How to use MeshLayout

Table of contents

Introduction
Gaps and margins
Placement
Resizing
License

Introduction

A MeshLayout is a layout manager that implements an extensible grid (mesh): cells in the same row get the same height and cells in the same column get the same width. The row heights/column widths are calculated calling getPreferredSize on the components of the row/column and set to the maximum of the heights/widths.

Gaps and margins

Components are laid out in a grid like manner, leaving space between components (gaps) and between the boundaries of the container and the components inside (margins).


MeshLayout offers a combination of constructors to allow to specify any combination of gaps and margins:

MeshLayout(int rows, int cols)
a default value is used as vertical and horizontal gap and for all margins
MeshLayout(int rows, int cols, int gap)
the specified value is used as vertical and horizontal gap and for all margins
MeshLayout(int rows, int cols, int hgap, int vgap)
the specified vertical and horizontal gaps are used, hgap is used for left and right margins and vgap is used for top and bottom margins
MeshLayout(int rows, int cols, Insets margins)
a default value is used as vertical and horizontal gap, along with the specified margins
MeshLayout(int rows, int cols, int gap,
Insets margins)
the specified value is used as vertical and horizontal gap, along with the specified margins
MeshLayout(int rows, int cols, int hgap, int vgap,
Insets margins)
the specified vertical and horizontal gaps are used, along with the specified margins

In most cases the default configuration can be used, without worrying about margins and gaps.

Placement

Let's create a JFrame whose contentpane layout is a MeshLayout with 4 columns and an unspecified number of rows:

    JFrame f = new JFrame("MeshLayout Horizontal Test");
f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
Container c = f.getContentPane();
c.setLayout(new MeshLayout(0, 4));

Components will be disposed horizontally in the container, one aside of the other, until the specified number of columns is reached, then the placement starts on the next line. Now let's add some components to it:

    JLabel label;
for (int num = 0; num < 11; ++num)
{
label = new JLabel("element " + num);
label.setBorder(BorderFactory.createLineBorder(Color.black));
c.add(label);
}
f.pack();
f.setVisible(true);

The above code creates the following frame:

A border has been added to the labels (through the setBorder method, you can see it in the code) to better see how the placement works. As you can see the third column is wider than the others, this is because the "element 10" label is wider than the other labels in the column. The width of the other components in the column is enlarged to match this component's width, but the  components in the other columns aren't influenced. Note also that an element is missing from the last row, the cell is left empty, but it takes its space like any other cell.

Another example, this time arranged vertically:

    f = new JFrame("MeshLayout Vertical Test");
f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
c = f.getContentPane();
c.setLayout(new MeshLayout(4, 0));
for (int num = 0; num < 15; ++num)
{
label = new JLabel("element " + num);
label.setBorder(BorderFactory.createLineBorder(Color.black));
c.add(label);
}
f.pack();
f.setVisible(true);

The above code creates the following frame:

This time the placement is vertical, due to the fact that the number of columns is zero, as can be seen by the label numbering, that goes up to down first and then left to right. The last two columns are wider for the reasons already explained above.
Note that in these examples the height of the components is always the same, this means that you can't see the rows enlarging, but the mechanism is the same: if a component of the row is taller than the others, then the row  height is augmented, and all elements in the row are made taller. The example in the following chapter shows also this behavior.

Resizing

By default a MeshLayout is not resizable, therefore once its size is calculated it won't react to resizing events. There are two methods to decide the mesh behavior to resizing events:

void setExpandRow(int expandRow)
sets the column that will expand horizontally when the container is resized
void setExpandColumn(int expandCol)
sets the row that will expand vertically when the container is resized

In this way one row and one column can be set to react to resizing events, letting the other rows and columns unchanged. Note that specifying both an expand row and an expand column, you'll get a cell that will expand in both directions.

Let's see a final example:

    f = new JFrame("MeshLayout Mixed Test");
f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
c = f.getContentPane();
MeshLayout layout = new MeshLayout(0, 2);
layout.setExpandColumn(1);
layout.setExpandRow(4);
c.setLayout(layout);
label = new JLabel("Name:", JLabel.RIGHT);
c.add(label);
JTextField text = new JTextField(24);
c.add(text);
label = new JLabel("Age:", JLabel.RIGHT);
c.add(label);
text = new JTextField(3);
c.add(text);
label = new JLabel("City:", JLabel.RIGHT);
c.add(label);
text = new JTextField(24);
c.add(text);
label = new JLabel("Social security number:", JLabel.RIGHT);
c.add(label);
text = new JTextField(16);
c.add(text);
label = new JLabel("Notes:", JLabel.RIGHT);
c.add(label);
JTextArea area = new JTextArea(4, 24);
c.add(new JScrollPane(area));
c.add(new JLabel()); // empty cell
layout = new MeshLayout(1, 3, new Insets(0, 0, 0, 0));
layout.setExpandColumn(0);
JPanel buttonsPanel = new JPanel(layout);
buttonsPanel.add(new JLabel()); // empty cell
buttonsPanel.add(new JButton("OK"));
buttonsPanel.add(new JButton("Cancel"));
c.add(buttonsPanel);
f.pack();
f.setVisible(true);

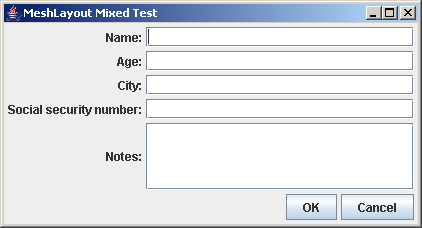

The above code creates the following frame:

First let's look at the first few lines in bold.

    MeshLayout layout = new MeshLayout(0, 2);
layout.setExpandColumn(1);
layout.setExpandRow(4);

The layout is created with two columns and an unspecified number of rows. Then the second column is set to be expandable (indexes are zero based), and the fifth row is set to be expandable. As you can see from the figure, the second column is the column with all the text fields, so that they will expand horizontally when the frame is made wider. This can be useful for an user that wants to see more text than she has available at the default frame size: enlarging the frame she will get bigger text fields.

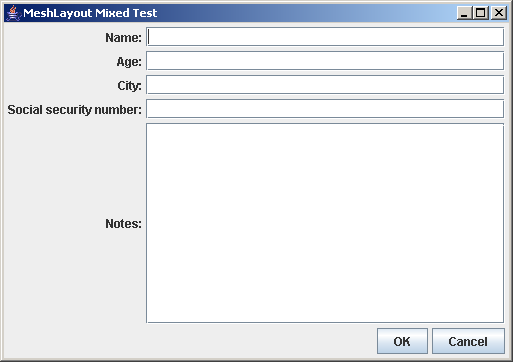

And the fifth row is the row with the Notes text area, so that it will expand also vertically, letting the user decide how many rows of text to see at once. Here is the same frame after a resize:

As you can see, all the text fields are wider and the text area is also taller. Note that the "Notes:" label is taller too, this can be seen because a JLabel by default centers vertically its text. You can change this behavior using the JLabel API, as done in the example, in which all labels are aligned right.

Now let's look at the second part of the example:

    c.add(new JLabel()); // empty cell
layout = new MeshLayout(1, 3, new Insets(0, 0, 0, 0));
layout.setExpandColumn(0);
JPanel buttonsPanel = new JPanel(layout);
buttonsPanel.add(new JLabel()); // empty cell
buttonsPanel.add(new JButton("OK"));
buttonsPanel.add(new JButton("Cancel"));
c.add(buttonsPanel);

The last row of the first MeshLayout contains the OK and Cancel buttons. They are put in the second column by adding an empty label in the first column, and they are put in a nested MeshLayout. This second MeshLayout has one row and  three columns, with the first column set to be expandable, containing an empty label. This trick permits to align the buttons to the right, because the first empty cell will grow to adapt to the width of the column in which this nested MeshLayout is put (that is expandable too). Note also that the margins are all set to 0, this has been done to avoid to add the default margins of the nested MeshLayout to the gaps and margins of the enclosing MeshLayout.
